Aramid Fiber Gasket

Model NO.: NY4250gasket
Type: Oil Seal
Performance: Temperature
Shape: O-Ring
Standard: Standard
Certificate: ISO9001

Send Inquiry

Description

Basic Info.

Model NO.	NY4350gasket
Type	Oil Seal
Performance	Temperature
Shape	All kinds of shapes
Applicable Medium	Oil Resistance, Water Resistance, General Acid and base
Main Material	Aramid Fiber,NBR
Usage	Shipbuilding, pump valve, plumbing and sanitary ware, pipe valve, mechanical assembly, etc.
Temperature Range	-50-350ºC
Transport Package	Wooden Box
Specification	customizable
Trademark	BTT
Origin	China
Production Capacity	5000000pcs/Year

Packaging & Delivery

Package Size	600600300mm
Package Gross Weight	300.000kg

Product Description

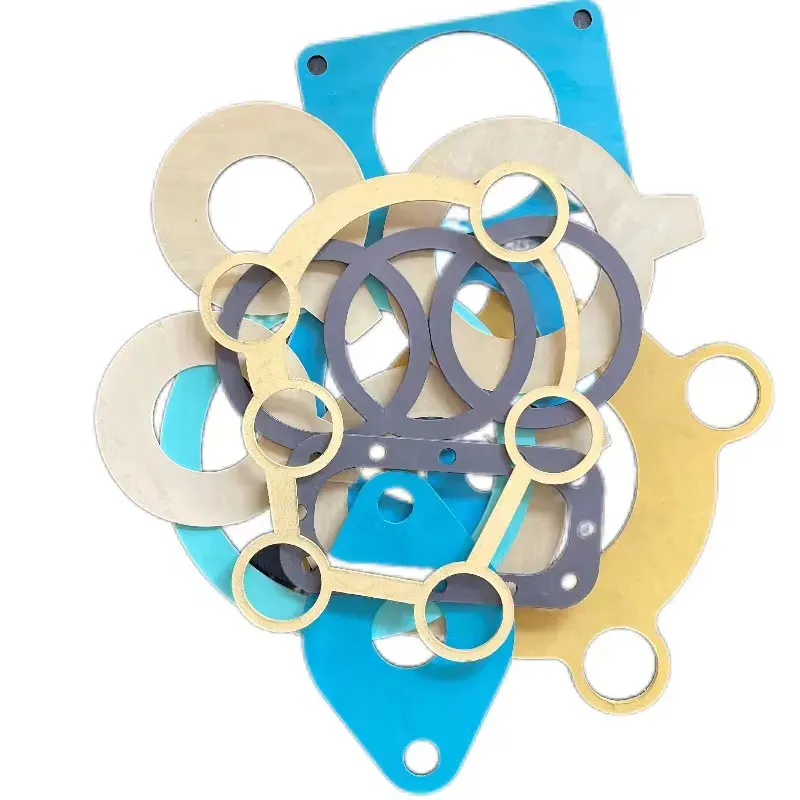

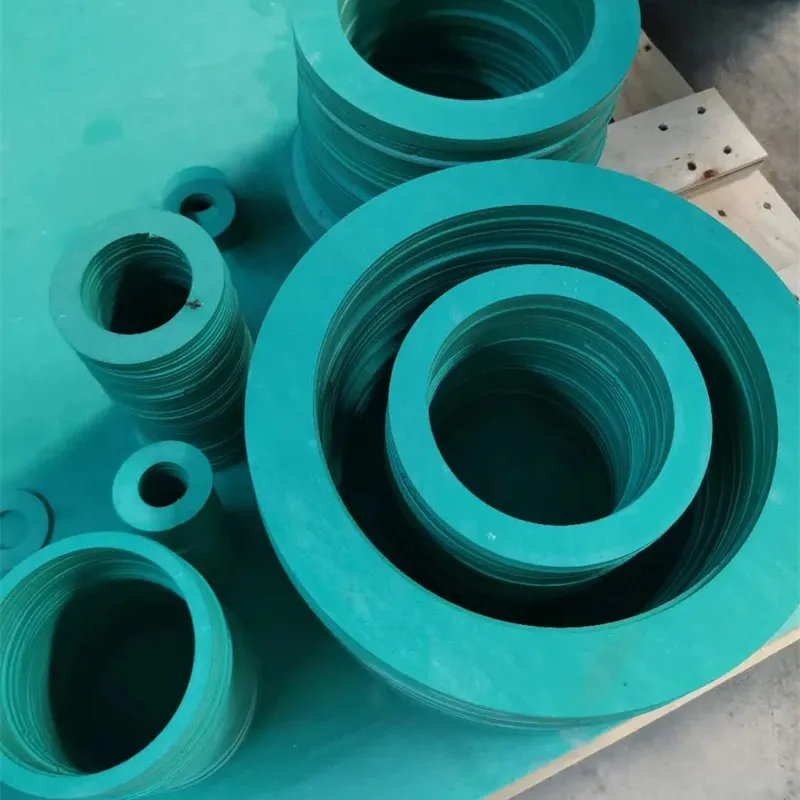

Asbestos-free rubber gaskets are high-performance gaskets. They not only have excellent resilience and provide certain compensability to the gasket, but also have outstanding aging resistance. It is often used in high-temperature resistant places.

Main Thickness: From 0.5mm to 5mm, with the capability to bond above 5.0mm thickness.
Main Colors: blue, green, and black.
For enhanced durability, thicknesses beyond1.0mm are reinforced with clip-on steel wire.

T:300℃

P:10.0MPA
Performance Introduction

Number	Test item	Unit	Parameter value
1	Density, ASTMF-1315	G/cm³	1.9±0.1
2	Strength, ASTMF-152	Mpa	≥9.0
3	Compression, ASTMF-36	%	7-17
4	Resilient rate, ASTMF-36	%	≥45
5	Sealing, ASTMF-37	Ml/min	≤1.0
Note 1: The gasket material with thickness greater than 3.0mm shall not be tested for transverse tensile strength Note 2: screen reinforced gasket material, do not do transverse tensile strength and nitrogen leakage rate test Note3：The temperature test was GB/T540-2008 heat and pressure resistance test, the experimental conditions were 350℃ temperature, 8mpa steam pressure, maintained for 30min, no breakdown.
