Basic Info.
|
Model NO. |
Clamp wire rubber sheet |
|
Speed |
General Speed Mechanical Seal |
|
Temperature |
Temperature Mechanical Seal |
|
Performance |
Temperature |
|
Standard |
Nonstandard |
|
Type |
Rubber Sheet |
|
Balance |
Balanced |
|
Certificate |
ISO9001 |
|
Applicable Medium |
Oil Resistance, Water Resistance, General Acid and |
|
Main Material |
Fiber, NBR |
|
Usage |
Industrial Pipes, Home Appliances, Auto Parts |
|
Temperature Range |
-50-150ºC |
|
Transport Package |
Wooden Box |
|
Specification |
1500*1500/1500*1000 |
|
Trademark |
BTT |
|
Origin |
China |
|
Production Capacity |
1200t/Year |
Packaging & Delivery
|
Package Size |
1550.00 * 1550.00 * 500.00mm |
|
Package Gross Weight |
250.000kg |
Product Description

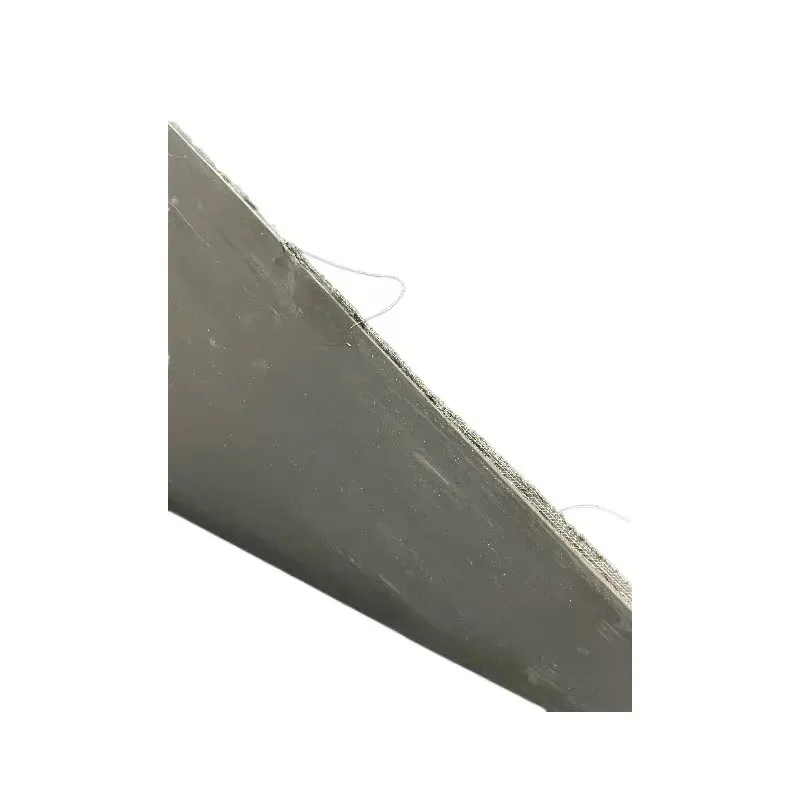

Material properties: non - asbestos Clamp wire rubber sheet
Performance introduction
| Number | Test item | Unit | Parameter value | |
| 1 | Density, ASTMF-1315 | G/cm3 | 2.0±0.2 | |
| 2 | Strength, ASTMF-152 | Mpa | / | |
| 3 | Compression, ASTMF-36 | % | 7-17 | |
| 4 | Resilient rate, ASTMF-36 | % | ≥30 | |
| 5 | Sealing, ASTMF-37 | Ml/min | / | |
| 6 | Always gentle and soft | Bend on a round bar with a diameter 12 times the nominal thickness of the sample. | No crack | |
| 7 | Impregnated IRM903 oil performance (149±2ºC, 5h) | Thickening rate | % | 0-15 |
| Weight gain rate | % | ≤20 | ||
| 8 | Performance after immersion of ASTM Fuel Oil B (21ºC-30ºC, 5h) | Thickening rate | % | 0-15 |
| Weight gain rate | % | ≤20 | ||
| Note 1: The gasket material with thickness greater than 3.0mm shall not be tested for transverse tensile strength Note 2: screen reinforced gasket material, do not do transverse tensile strength and nitrogen leakage rate test |
||||
Product drawing
Production process
Field operation
consignment
Jiangsu Sealstars Sealing Technology Co., Ltd. was founded in 2013, is located in the beautiful Siyang. The company registered capital of 34.7 million yuan, covers an area of 102 acres, annual production capacity of 2000 tons, the company employees a total of 86 people, including R & D personnel 8 people, the company mainly produces high-quality asbestos-free sealing rubber sheet, is a research and development, production, sales in one of the high-tech seal production enterprises.
The company spirit of "honesty, faith first" purpose, "quality of survival, credibility and development, scale and market" business philosophy, actively play professional advantages, constantly expand market share, to build first-class brand. The company involves a wide range of fields, products have been widely used in chemical industry, shipbuilding, nuclear power and other industries, some products have been for Shangchai, tin chai and other engine enterprises supporting, has a wealth of sealing materials research and development and production experience.
